1 #ifndef _WAGON_H_ 2 #define _WAGON_H_ 3 void wagonInit(); 4 void wagonDraw(double wheel_theta); 5 #endif /* _WAGON_H_ */
1 #include <math.h> 2 #include <GL/glut.h> 3 #include "wheel.h" 4 #include "wagon.h" 5 // Initializes data necessary for drawing a wagon. 6 void wagonInit() { 7 wheelInit(); 8 } 9 // Draws wagon with wheels' bottom on the x-axis, with front at 10 // origin (0,0) and rear at (1,0). The parameter, expressed in 11 // radians, indicates the rotation of the wheels. 12 void wagonDraw(double wheel_theta) { 13 glBegin(GL_POLYGON); // Draw wagon bed. 14 glVertex2f(1.0, 0.12); 15 glVertex2f(1.0, 0.3); 16 glVertex2f(0.0, 0.3); 17 glVertex2f(0.0, 0.12); 18 glEnd(); 19 glBegin(GL_LINES); 20 glVertex2f(0.13, 0.35); // Draw bench. 21 glVertex2f(0.21, 0.35); 22 glVertex2f(0.20, 0.30); // Draw bench back. 23 glVertex2f(0.24, 0.50); 24 glEnd(); 25 glPushMatrix(); // Draw front wheel. 26 glTranslatef(0.15, 0.1, 0); 27 glScalef(0.1, 0.1, 0.1); 28 glRotatef(wheel_theta * 180 / M_PI, 0.0, 0.0, 1.0); 29 wheelDraw(); 30 glPopMatrix(); 31 glPushMatrix(); // Draw rear wheel. 32 glTranslatef(0.8, 0.1, 0); 33 glScalef(0.1, 0.1, 0.1); 34 glRotatef(wheel_theta * 180 / M_PI, 0.0, 0.0, 1.0); 35 wheelDraw(); 36 glPopMatrix(); 37 }

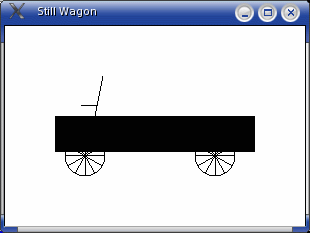

1 #include <GL/glut.h> 2 #include "wagon.h" 3 // Initializes information for drawing within OpenGL. 4 void init() { 5 glClearColor(1.0, 1.0, 1.0, 0.0); // Set window color to white. 6 glMatrixMode(GL_PROJECTION); // Set projection parameters. 7 gluOrtho2D(-.25, 1.25, -.25, 0.75); // Set viewable coordinates. 8 wagonInit(); 9 } 10 // Draws the image. 11 void draw() { 12 glClear(GL_COLOR_BUFFER_BIT); // Clear display window. 13 glColor3f(0.0, 0.0, 0.0); // Set drawing color to black. 14 wagonDraw(0.0); 15 glFlush(); // Process all OpenGL routines as quickly as possible. 16 } 17 int main(int argc, char **argv) { 18 glutInit(&argc, argv); 19 glutInitDisplayMode(GLUT_SINGLE | GLUT_RGB); 20 glutInitWindowPosition(50, 100); // Set up display window. 21 glutInitWindowSize(300, 200); 22 glutCreateWindow("Still Wagon"); 23 init(); 24 glutDisplayFunc(draw); 25 glutMainLoop(); 26 return 0; 27 } 28 // To compile: gcc wagon_main.c wagon.c wheel.c -lglut -lGLU -lGL -lm
