Test 3

[1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12]

Problem X3.1.

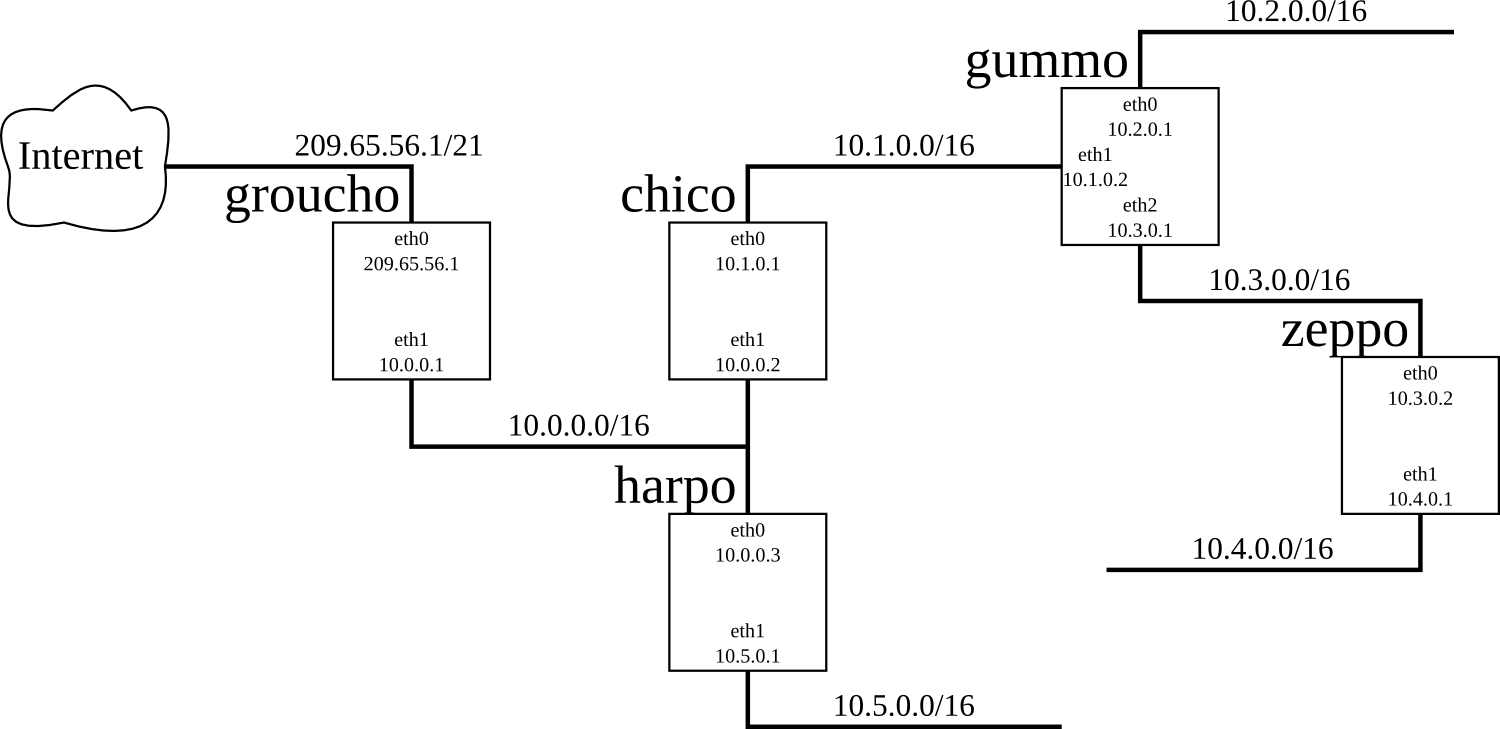

[10 pts] The below diagram represents an internetwork; each thick solid line represents a single network, with the IP address block as shown (e.g., The squares represent routers, each containing two or three Ethernet cards, identified as eth0, eth1, or eth2, configured with the IP address shown.

For the router named groucho, at left, what should the routing table be? Note that each row of the routing table should contain a network specification (or “default”), an Ethernet card identifier, and either the gateway IP address or the word “direct.”
